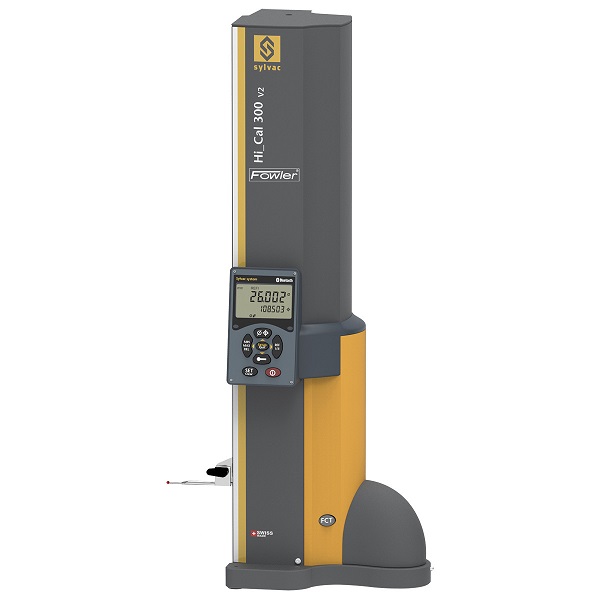

Fowler, Sylvac 12 inch - 300mm BLUETOOTH Hi CAL Electronic Height Gage with ISO A2LA Certification, 54-931-300-BT-C

Special Price $5,947.87 Regular Price $6,612.56
SKU
54931300BTC BOM

Features:
• Quick, easy computer recorded measurements
• Extra low measuring force, from 0.2N
• Measure internal and external diameters, centerlines, heights, widths, depths and MIN/MAX/TIR capability
• Excellent repeatability thanks to the motorized carriage
• High reliability
• Bluetooth, USB and RS232 data outputs
• Battery life: 40 hours rechargeable during operation
• Touch sensitive probe speed for easy operation
• Base with small footprint
• Includes: protective cover, charging set, ruby ball probe Ø3mm, setting gage and calibration certificate

Range:  12″/300mm
Application Range:  12.6″/0-320mm
Maximum Error (µm):  2.5 + L/175
Repeatability:  2µm
Resolution:  0.00005″/0.001mm
Velocity (mm/sec.):  50/100
Measuring Force:  0.2 - 0.3 Newtons
Self-Contained Use:  Approximately 40 hours
Overall Height:  20.83″/529mm
Weight:  10.14 lb/4.6 kg
S_Connect:  USB/mini USB/RS-232

Programmable by PC
Zero setting
Min/max/delta
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speed
