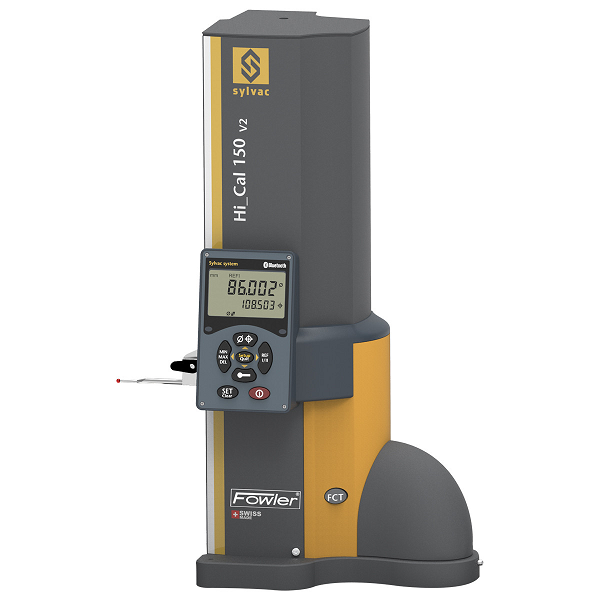

Fowler, Sylvac 6 inch - 150mm BLUETOOTH Hi CAL Electronic Height Gage, 54-931-150-BT

Special Price $5,128.43 Regular Price $5,698.25
SKU
54931150BT

Features:
• Quick, easy computer recorded measurements
• Extra low measuring force, from 0.2N
• Measure internal and external diameters, centerlines, heights, widths, depths and MIN/MAX/TIR capability
• Excellent repeatability thanks to the motorized carriage
• High reliability
• Bluetooth, USB and RS232 data outputs
• Battery life: 40 hours rechargeable during operation
• Touch sensitive probe speed for easy operation
• Base with small footprint
• Includes: protective cover, charging set, ruby ball probe Ø3mm, setting gage and calibration certificate

Range:  6″/150mm
Application Range:  6.1″/0-155mm
Maximum Error (µm): 2.5 + L/175
Repeatability:  2µm
Resolution:  0.00005″/0.001mm
Velocity (mm/sec.):  50/100
Measuring Force:  0.2 - 0.3 Newtons
Self-Contained Use:  Approximately 40 hours
Overall Height:  14.92″/379mm
Weight:  8.6 lb/3.9 kg
S_Connect:  USB/mini USB/RS-232

Programmable by PC
Zero setting
Min/max/delta
PRESET function
2 references
Height measurement, Ø and centerlines
2 types of progressive speed

More Information
Is Lead time No
File Downloads
pdf
(Size: 3.9 MB)
