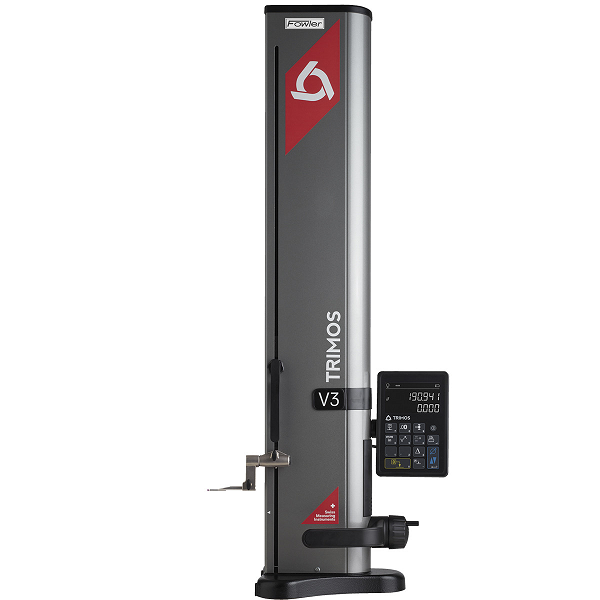

Fowler,-Trimos V3 28”/711mm Electronic Height Gage, 54-192-370-0

Special Price $4,553.10 Regular Price $5,059.00
SKU
541923700
The NEW Fowler-Trimos V vertical measuring instruments have been developed for the most difficult workshop environments. Manufactured in their entirety in Switzerland, they guarantee a robust, precise and reliable product in the long run. Along with higher accuracy and repeatability, the V7 and V9 models also offer 2D hole pattern measurement, programming and statistics.


The touch screen display on the V7 and V9 models offers an ease of use never reached yet on a vertical measuring instrument. The menus and functions displayed obey to a very strict philosophy and design. This allows a great efficiency, even in complex tasks such as programming, 2D mode, angle measurements or statistical analysis of results.


Features:
• Measuring ranges 400mm, 700mm and 1100mm
• Extremely easy to use
• High contrast display allows easy reading at any time with user friendly functions
• Electronically adjustable measuring force 0.75/1.5 (N)
• Vast range of accessories
• All adjustments possible without tools
• Cast iron base for optimal stability
• RS232 and USB interfaces
• Air cushion (on all models except V3)
• Dual probe holders (on all models except V3)
• Carriage displacement: Manual (V5 - V9 includes selectable manual or motorized carriage displacement)
• Measures heights, diameters, perpendicularity, centerlines, Min/Max/Delta
• Accessory measuring probes up to 340mm in length available and provide excellent repeatability



All V Models Include:
• Charging unit
• Measuring insert with ruby ball Ø4mm
• Probe holder elbow Ø 8mm
• Setting gage
• User's manual
• Test certificate


Technical Data
Measuring Range: 28″/711mm
Range with probe inverted: 31.9″/812mm
Max. Permissible Errors: 0.00032″/0.008mm
Frontal Squareness Deviation: 0.0006"/0.015mm
Resolution: 0.00005″/0.001mm
Repeatability (2s): 0.00008″/0.002mm (Ø 0.00016″/0.004mm)
Measuring Force (N): 0.75 / 1.5
Battery Life (Hrs): 40
Interfaces: USB / RS232
Air Cushion: NO
