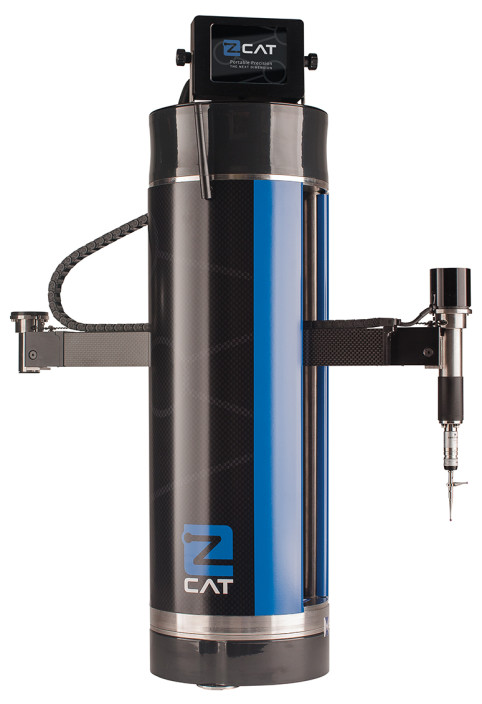

Fowler zCAT, The World's First Portable DCC CMM, 54-950-001-0

Special Price $39,542.51 Regular Price $40,349.50
SKU
549500010
Introducing zCAT!
The world's first truly portable DCC Coordinate Measuring Machine!
A revolutionary solution to a complicated problem
Utilizing advanced technology, software, design and electronics, the zCAT is manufactured as a compact self-contained unit that is fundamentally different than existing CMM technology, design and operation. From initial equipment acquisition through set-up, training and maintenance, the zCAT offers significant cost reductions without compromising measuring accuracy or performance.
Easy-to-Use
The zCAT is the easiest DCC CMM to use. Built with the intention of lowering the threshold of training needed to successfully operate and even program a DCC CMM, every component, from the mechanics to the software, has been examined for optimal user experience and ease of use.
Portability
The zCAT is the world’s first portable direct computer control coordinate measuring machine (DCC CMM). At only 30 pounds, the zCAT conveniently goes with you wherever you need it. No longer are you required to take the part to the CMM; from a surface plate, to a table on the shop floor or on a large part itself, the zCat can be deployed directly in the manufacturing process.
Power
Being tethered to an outlet is a thing of the past. The zCAT is powered by a built-in 10.8 volt lithium ion battery, providing enough power to gain precise, accurate measurements for four hours in the field. The zCAT is truly wireless. A power supply charger is included for quick recharges between or during use.
Probe System
The zCAT ensures accuracy with an industry-standard probe system. Find comfort in knowing that easy-to-acquire, accurate results are measured by this reliable touch-trigger probe system. Whatever your measurement task, this probe system allows for the optimal stylus arrangement for accuracy.
Programming
Automate measuring processes, and gain accurate data time after time. The unique zCAT clutch seamlessly shifts from direct computer to manual control without the need for flipping switches or clicking buttons. Simply, move the probe manually, and the computer will remember and reproduce the movements for accurate, repeatable measurements.
Software
The zCAT comes with ControlCAT - built-in, easy-to-use, geometric measurement software controlled through an intuitive, icon-based touchscreen interface. Take advantage of the direct computer controlled measurements without the need for a secondary computer. From shop technicians to dedicated CMM operators, anyone can feel comfortable operating the zCAT.
ControlCAT Metrology Software
• Easy to use geometric measurement tool
• Measures manually or DCC. Creates constructions for most common geometrics including:
Plane Line Point Sphere Angle PCD
Circle Slot Cone Reference Cylinder Cloud
• Reports actual and nominal information to Excel spreadsheet
• Program remembers geometry and plays back for repetitive part measurements
I++ Server Software
Optional MK4 zCat Software gives zCat advanced 3D capabilities including:
• Automatic measurement routines
• Powerful interactive graphics window
• 2D and 3D inspection
• DXF data import
• Feature construction
• GD&T dimensions and tolerances
• Teach & learn programming
• Engineering drawing GD&T report
• Simple PASS/FAIL report
• Real-time SPC
• Export to DXF
And much more!
